Suzuki's V6 outboards

run for distant offshore fishing grounds, cruise to exotic ports or simply get top line performance.

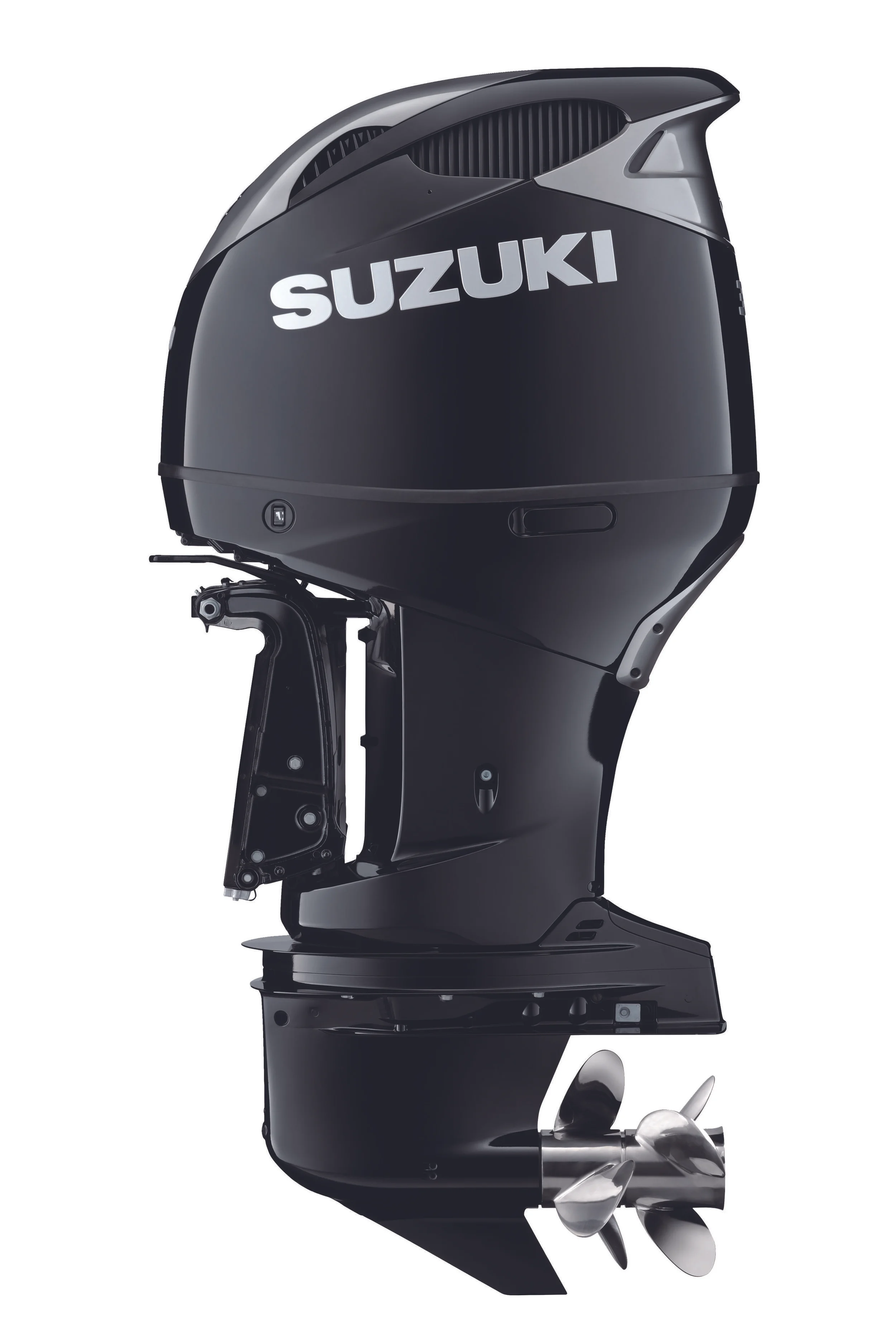

DF350 (Electronic Shift Control)

It’s no secret that there is a growing demand for more powerful outboard motors.

These new outboards have, in turn, fueled a move to newer, larger boat designs that previously may have been powered by stern drive or inboard power.

So, as more powerful outboards are introduced, the boats get bigger and as the boats get bigger, outboards are getting more muscular. Suzuki embarked on a major engineering expedition to build the Ultimate 4-Stroke outboard



DF350 Specifications

RECOMMENDED TRANSOM HEIGHT mm (in.) X : 635 (25) XX : 762 (30)

STARTING SYSTEM: Electric

WEIGHT kg (Ibs.) *1: X : 330 (727) XX : 339 (747)

ENGINE TYPE: V6 - 55° DOHC 24-Valve

Valve Train Drive: Chain with Variable Valve Timing

FUEL DELIVERY SYSTEM: Electronic Fuel Injection

NO. OF CYLINDERS: 6

PISTON DISPLACEMENT ㎤ (cu.in.): 4,390 (267.9)

BORE × STROKE mm (in.): 98 (3.74) x 97 (3.82)

MAXIMUM OUTPUT kW (PS): 257.4 (350)

FULL THROTTLE OPERATING RANGE rpm: 5,700 - 6,300

STEERING: Remote

OIL PAN CAPACITY l (U.S./Imp. qt.): 8.0 (8.5)

IGNITION SYSTEM: Fully-transistorized

ALTERNATOR: 12V 54A

ENGINE MOUNTING: Shear Mount

TRIM METHOD: Power Trim and Tilt

GEAR RATIO: 2.29:1

GEAR SHIFT: F-N-R (Drive-by-Wire)

EXHAUST: Through Prop Hub Exhaust

PROPELLER SELECTION (Pitch) *2All propellers are the 3-blade type: FRONT: 3×15 1/2×19.5-31.5
REAR: 3×15 1/2×19.5-31.5



DF325 (Electronic Shift Control)

We are proud to introduce our NEW DF325A – an outboard that perfectly balances awesome power and thrust, with outstanding fuel-efficiency and trusted reliability all within a lightweight and stylish design.

Built with the every-day use of larger boats in mind, this market-leading new outboard has been engineered to run on 91 RON fuel and, as a world-first, is the first four stroke outboard over 300 horsepower to do so.

The high-tech and innovative DF325A has been designed to be robust, easy to use and versatile, making it the ideal outboard for large boats whatever the task.

Whether you are using your boat for work or play, wherever you are in the world, this new outboard is the ultimate choice.

DF325 Specifications

RECOMMENDED TRANSOM HEIGHT mm (in.): X : 635 (25) XX : 762 (30)

STARTING SYSTEM: Electric

WEIGHT kg (Ibs.) *1: X : 330 XX : 339

ENGINE TYPE: V6 - 55° DOHC 24-Valve

Valve Train Drive: Chain with Variable Valve Timing

FUEL DELIVERY SYSTEM: Electronic Fuel Injection

NO. OF CYLINDERS: 6

PISTON DISPLACEMENT ㎤ (cu.in.): 4,390 (267.9)

BORE × STROKE mm (in.): 98 (3.74) x 97 (3.82)

MAXIMUM OUTPUT kW (PS): 239.0 (325)

STEERING: Remote

FULL THROTTLE OPERATING RANGE rpm: 5,300 - 6,300

OIL PAN CAPACITY l (U.S./Imp. qt.): 8.0

IGNITION SYSTEM: Fully-transistorised

ALTERNATOR: 12V 54A

ENGINE MOUNTING: Shear Mount

TRIM METHOD: Power Trim and Tilt

GEAR RATIO: 2.29:1

GEAR SHIFT: F-N-R (Drive-by-Wire)

EXHAUST: Through Prop Hub Exhaust

PROPELLER SELECTION (Pitch) *2All propellers are the 3-blade type: FRONT: 3×15 1/2×15.0-31.5
REAR: 3×15 1/2×15.0-31.5

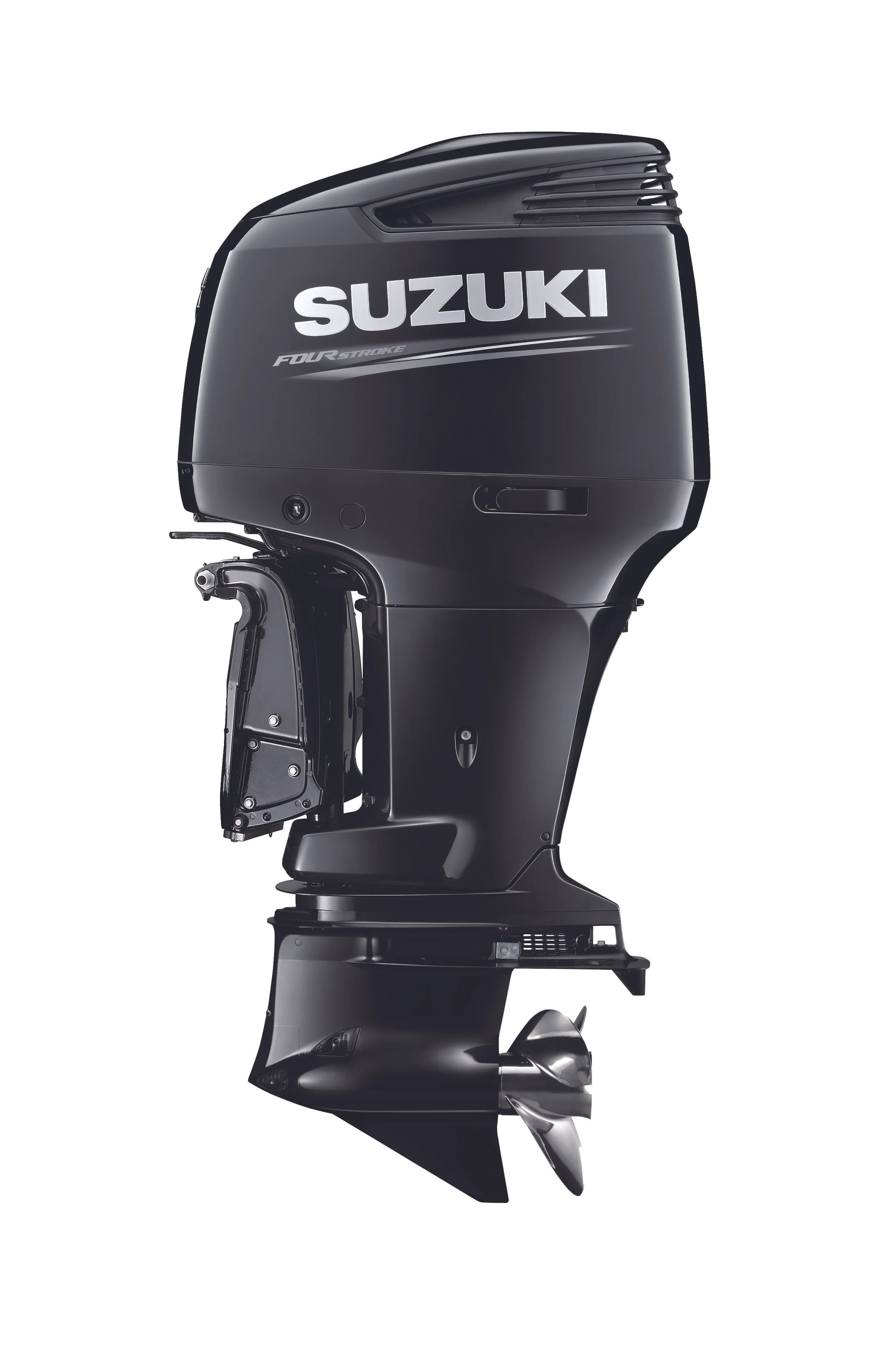

DF250_300APX_side_2017 (1).jpg

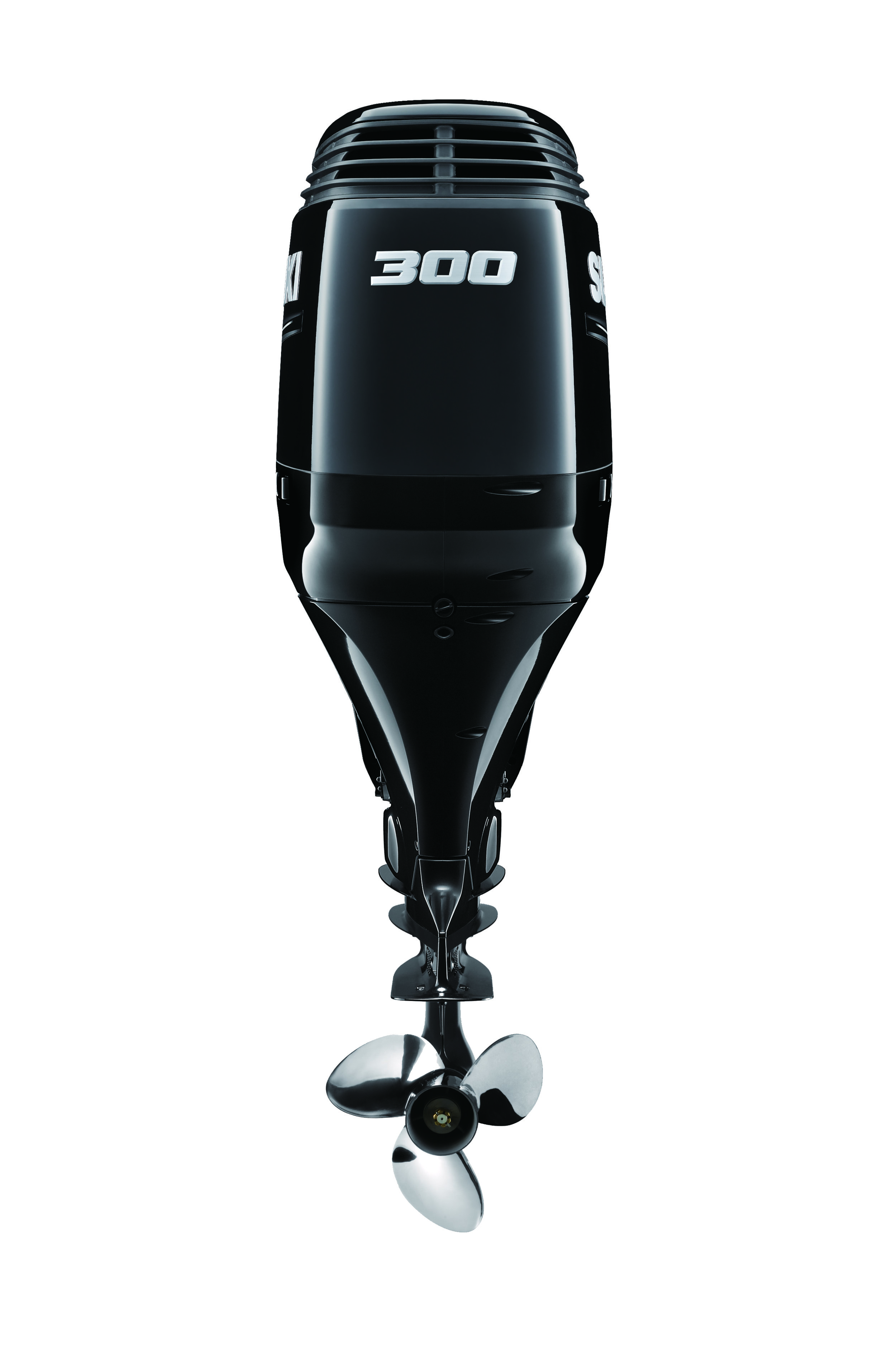

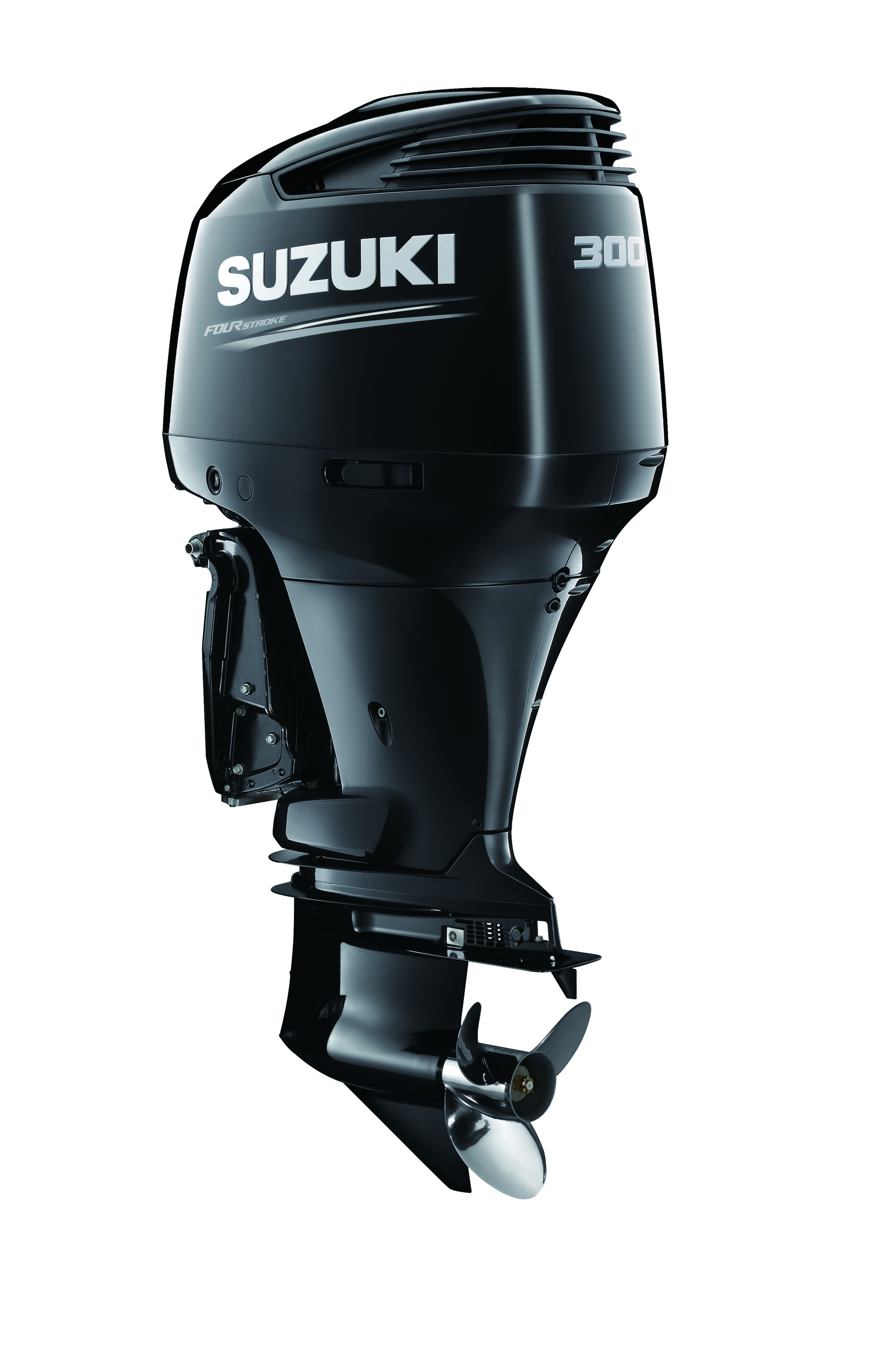

DF300APX (Electronic Shift Control)

“The Ultimate 4-Stroke Outboard”. Since its introduction, Suzuki's flagship 300 hp V6 has been a showcase for advanced technologies and designs. The award winning DF300AP incorporates "Suzuki Selective Rotation" - the world's first outboard that combines standard and counter-rotation operation into the same lower unit. Two-Way low water pick up inlet provides engine cooling with increased water flow. The DF300AP also features “Suzuki Precision Control”.  This fly-by wire control offers silky smooth shifting and throttle response. The addition of "Suzuki Lean Burn Control" with "Oxygen Sensor" can provide an improvement in fuel efficiency, especially while cruising on the long run home.

Available in Black or White.

DF300AP Specifications

Body Color: Shadow Black Metalic or Cool White

Recommended Transom Height (inches): X: 25 XX: 30 With Suzuki Selective Rotation

Starting System: Electric - Suzuki Start System

Weight LBS: X 604, XX 615

Engine Type: DOHC 24-Valve

Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection with Lean Burn and Oxygen Sensor

No. Of Cylinders: V6 (55°)

Piston Displacement inches (cc): 245.6 (4028)

Bore X Stroke Inches (mm): 3.81 x 3.46 (98 x 89)

Maximum Output HP: 300

Operating Range (RPM): 5700 - 6300

Steering: Remote

Troll Mode: Optional Troll Mode - See Dealer

Oil Pan Capacity quarts (liter): 8.5 (8.0)

Ignition System: Solid State Direct Ignition

Alternator: 12V 54A

Trim Position: Power Trim and Tilt

Gear Ratio: 2.08:1

Standard Propeller: Optional See Dealer

Propeller Selection: 17 - 27.5


DF250TX 45.png
DF250TX Side.png

DF 250

Suzuki DF250 was the first 250 horse power V-6 four-stroke outboard on the market. This is the motor that started it all and has a showcase full of trophies and awards to prove it.  If you are buying a new boat or repowering a trusty companion, make it a one stop shop and rig that boat with a new Suzuki DF250 V-6.

DF250 comes with VVT technology for extra power.

Available in Black or White.



DF250 Specifications

Recommended Transom Height (inches): X: 25 XX: 30

Starting System: Electric

Weight LBS: X: 580 XX: 591

Engine Type: DOHC 24-Valve

Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection

No. Of Cylinders: V6 (55°)

Piston Displacement inches (cc): 220.5 (3614)

Bore X Stroke Inches (mm): 3.74 x 3.35 (95 x 85)

Maximum Output HP: 250

Operating Range (RPM): 5500-6100

Steering: Remote

Choke: N/A

Oil Pan Capacity quarts (liter): 8.5 (8.0)

Ignition System: Solid State Direct Ignition

Alternator: 12V 54A

Trim Position: Power Trim and Tilt

Gear Ratio: 2.29:1

Standard Propeller: Optional See Dealer

Propeller Selection: 17 - 27.5


DF225TX 45.png

DF225

The DF225 V-6 four-stroke outboard is packed with technology. This four-stroke engine has large displacement, lots of torque and plenty of power. This four stroke engine is a clean runner and certified with a 3-Star Ultra-Low Emission rating from the California Air Resources Board (CARB) and has also met the EPA 2010 standard.

Available in Black and White.



DF225 Specifications:

Body Color:  Shadow Black Metalic or Cool White

Recommended Transom Height (inches):  X: 25 XX: 30

Starting System: Electric

Weight LBS: X: 580 XX: 591

Engine Type: DOHC 24-Valve

Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection

No. Of Cylinders: V6 (55°)

Piston Displacement inches (cc): 220.5 (3614)

Bore X Stroke Inches (mm): 3.74 x 3.35 (95 x 85)

Maximum Output HP: 225

Operating Range (RPM): 5000-6000

Steering: Remote

Choke: N/A

Oil Pan Capacity quarts (liter): 8.5 (8.0)

Ignition System: Solid State Direct Ignition

Alternator: 12V 54A

Trim Position: Power Trim and Tilt

Gear Ratio: 2.29:1

Standard Propeller: Optional See Dealer

Propeller Selection: 17 - 27.5
